Single and Double Arm Sigma Mixers

Description for sigma kneader

A sigma (Z) mixer is a horizontal kneader built for high-viscosity masses that do not flow like standard batters. The Z-shaped blades work the material by repeated compression, folding and shear against the trough walls, which is why this mixer style is commonly selected for dense doughs and cohesive mixes where conventional paddles cannot circulate product reliably.

---

Single arm vs double arm - practical selection

Single-arm configurations are typically chosen when the product still has some flow behavior and you mainly need controlled blending. Double-arm sigma kneaders are preferred when the mass becomes elastic, sticky, or heavily loaded with solids, because two blades create a stronger kneading action and more consistent turnover across the trough.

---

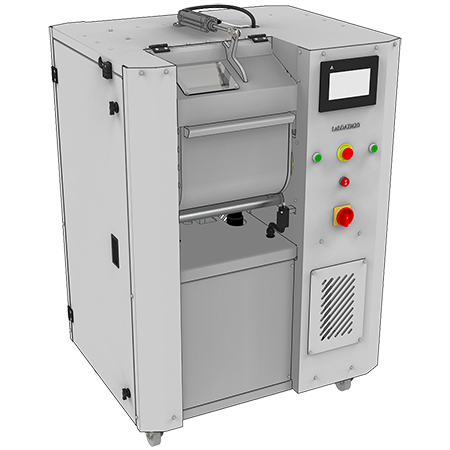

Why the trough is water-jacketed

Dense mixes generate heat from internal friction and motor torque. A jacket helps keep process temperature stable. Heating can reduce viscosity and torque peaks during start-up or when fats crystallize, while cooling can prevent softening, oil bleed or recipe drift in temperature-sensitive formulations. For applications that require rapid temperature pull-down, an external chilled-water loop can be connected to the jacket.

---

Why sigma kneaders handle torque better than standard mixers

In high-solids doughs, the resistance is not only viscosity but also elastic recovery and wall friction. Sigma blades work with compression and folding, keeping the mass moving even when the product does not “flow”. This reduces dead zones and improves kneading uniformity compared to paddle mixers that rely on circulation.

---

Typical mixing sequence for short dough and granola-style masses

• Pre-blend dry ingredients to distribute fine powders.
• Add fats/syrups and knead until a uniform plastic phase forms.
• Use jacket control to keep consistency stable during final development.
• Discharge by tilting once the mass releases cleanly from the trough.

---

What drives repeatability in production

• Correct loading ratio (overfilling reduces turnover, underfilling reduces kneading efficiency).
• Stable raw material condition (dough temperature, fat state, moisture balance and particle size).
• Blade speed profile and mixing time matched to the recipe (not only “mix longer”).
• Consistent jacket temperature control to avoid viscosity drift batch-to-batch.

---

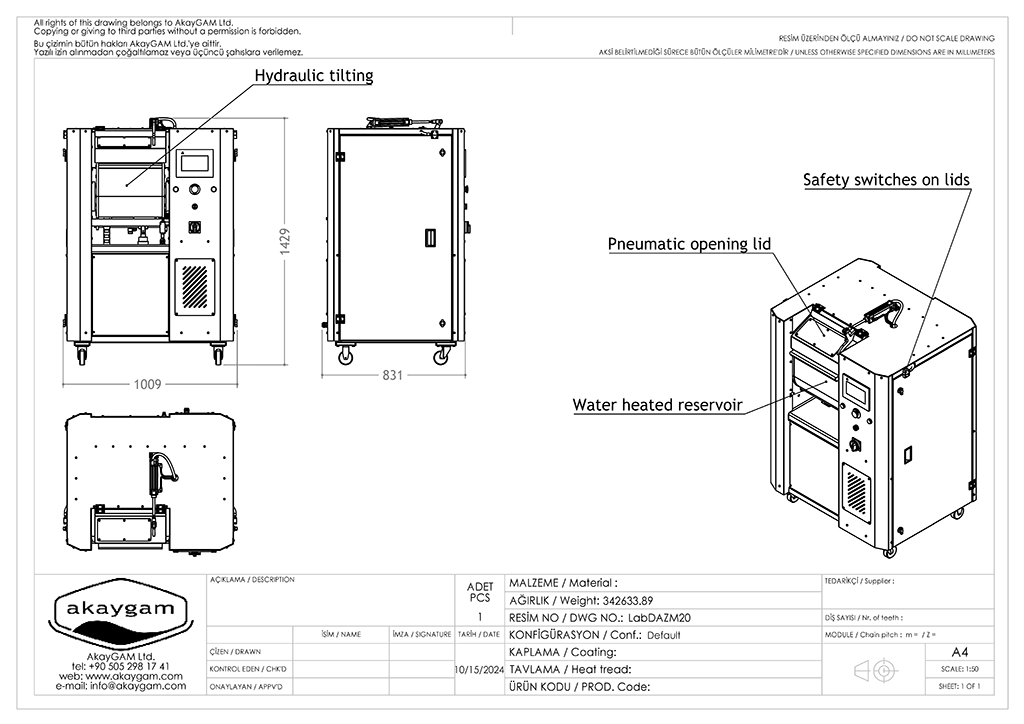

Discharge and cleaning logic

Tilting discharge is used to empty the trough efficiently, especially for sticky or cohesive products that do not drain. Discharge strategy should match your downstream feeding method (manual transfer, hopper feed, extruder feed) and your cleaning requirements. For frequent product changeover, smooth internal surfaces and access for washing reduce downtime and improve hygiene control.

---

Controls and safety (operator-friendly operation)

For operator safety, tilting should only be enabled with a deliberate action (such as a two-hand control or interlocked sequence). Recipe-based settings on PLC/HMI can improve repeatability by storing blade speed, mixing time, jacket setpoints and direction changes for each product.

---

What products suit sigma (Z) mixers best

Sigma mixers are selected when the product behaves more like a “mass” than a liquid. In confectionery and bakery environments, this often means a combination of high solids, high fat, and limited free water that makes the mix resistant to flow.

• Short/soft doughs for rotary moulding and wire-cut processes (plastic, non-flowing dough).
• Granola-style clusters where binding and controlled agglomeration matter.
• Gum-style or elastic masses where strong kneading is required.
• Dense pastes and compound-like masses (process dependent, consult for recipe torque limits).

---

How to size a sigma kneader

Model selection should be based on the required working volume (not only the nominal liters), product density, and expected torque. A practical approach is to target a stable working fill level that allows blade turnover without dead zones, then confirm that motor power and gearbox rating match the worst-case viscosity at your lowest process temperature.

• Define batch weight, target batch cycle time, and number of batches per hour.
• Confirm dough temperature window and whether heating/cooling is required.
• Share recipe solids and particle characteristics if the mix contains abrasives or hard inclusions.

Auxiliary equipment

Chiller supplies chilled water required for some jacketed kneading applications.
